Concept
This flexible tube camera allows you to easily record videos and still images even in narrow or high places beyond your reach. The flexible tube is dustproof and waterproof, making it suitable for shooting around water. In addition, the LED light at the tip of the flexible tube enables use in dark places. Its compact size makes it easy to carry around.
Highlighted features
|
Flexible Tube That Can Bend Freely The flexible tube, equipped with an LED light and lens at the tip, allows easy shooting in narrow or high places that are hard to reach. You can shoot or record locations such as inside car engines or pipes that are otherwise invisible. |
|

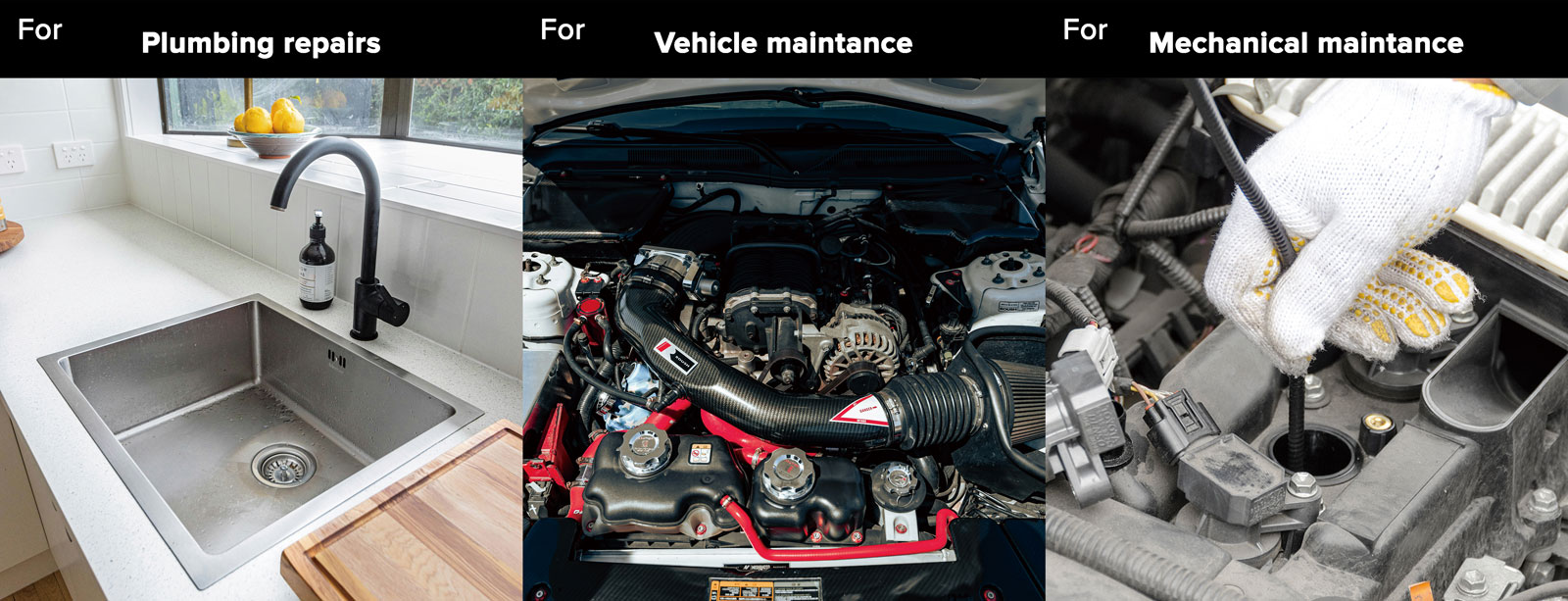

Dustproof and Waterproof Design The flexible tube is dustproof and waterproof, making it ideal for plumbing repairs, mechanical maintenance, or inspection before and after cleaning. |
|

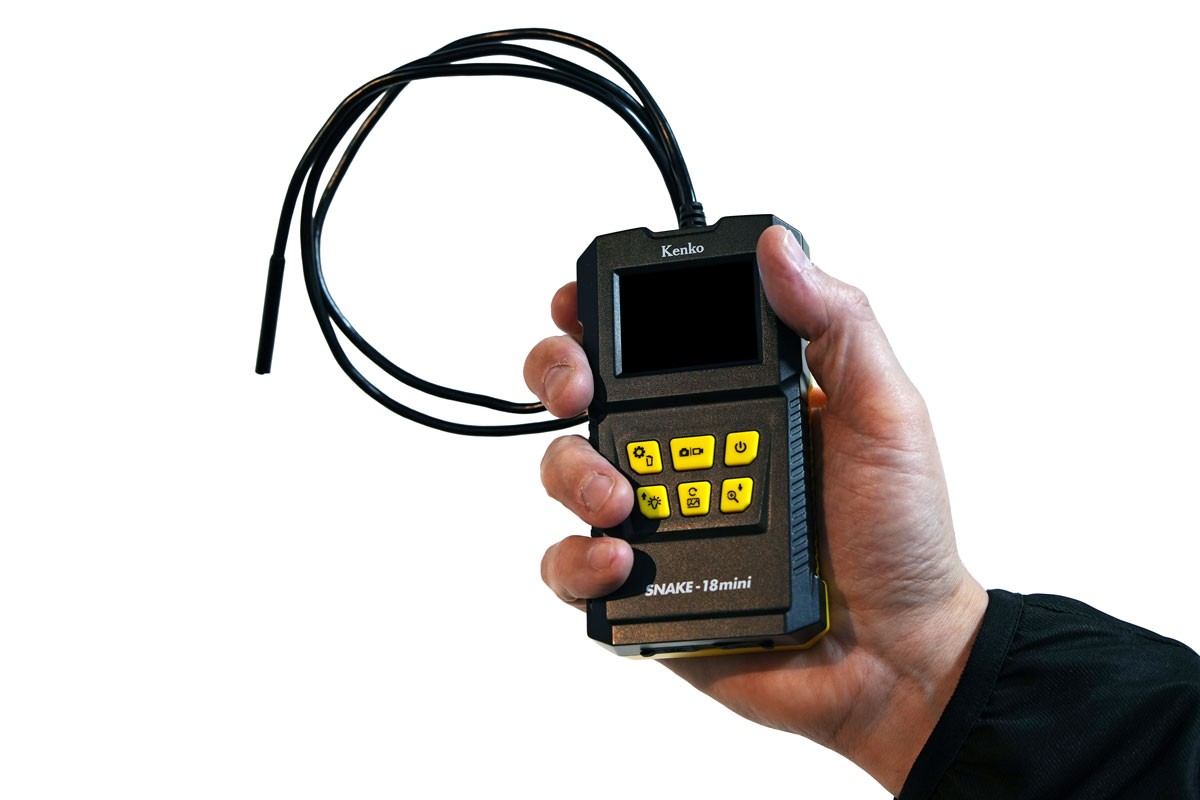

Compact Compact size for convenient portability. |
 |
|
2.0-inch LCD Monitor Equipped with a 2.0-inch LCD monitor, allowing you to check narrow or high places on-screen while shooting. |
|
5-Level Brightness Adjustment The built-in high-brightness LED light allows shooting in dark environments. You can adjust brightness in 5 levels for optimal illumination. |
 |
Three Types of Attachments Included Comes with three attachments for use at the lens tip: mirror, hook, and magnet. |
|

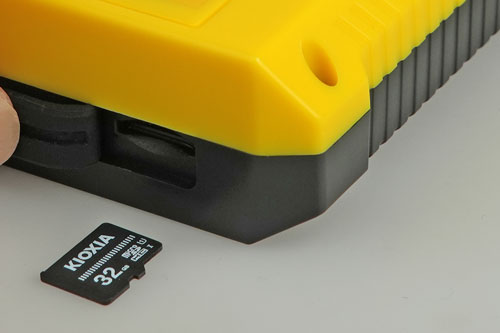

Supports microSDHC/SDXC Memory Cards Videos and still images are saved to a microSDHC or SDXC memory card (sold separately). |
 |
 |

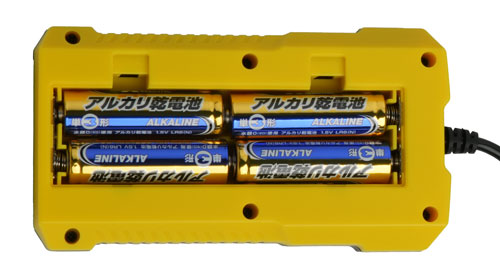

Powered by Four AA Alkaline Batteries Since it's not rechargeable, there's no need for charging. It runs on four easily available AA alkaline batteries, allowing immediate use in emergencies (sold separately). |
Specifications
| Image Sensor | 1/9-inch CMOS |
| Total Pixels | 0.3 megapixels (640x480) |
| Effective Pixels | 0.3 megapixels (640x480) |
| Lens | f=1.62mm F2.8 |
| Zoom | Up to 2x (3-step digital zoom, not usable during recording) |
| Focusing Distance | Approx. 20mm-100mm |
| LCD Monitor |
2.0-inch TFT |
| Built-in Memory |
No user-accessible storage |
| External Memory |
microSDHC: 4–32GB (sold separately) * For using microSDXC, must be formatted in the device |
| File Format |
Still images: JPG |
| Photo Size |
VGA: 640x480 (0.3 megapixels) |
| Video Size |
VGA: 640x480 (30fps) |
| Built-in Light | White LED x6 (off + 5-step brightness adjustment) |
| Operating Temperature | 0–45°C (non-condensing) 5–30°C (non-pressurized water) |
| Camera Diameter | Approx. φ5.5mm (without attachment) |
| Tube Diameter | Approx. φ4mm |
| Power Supply | 4x AA alkaline batteries (sold separately) |
| I/O Port |
USB Type-C |
| Dimensions (Width x Height x Depth) |
Main unit: approx. 69 x 124 x 29mm |
| Weight |
Approx. 135g (excluding accessories, microSD card, and batteries) |
| Included Accessories |
Camera body, USB cable, mirror/hook/magnet (attachments) |
* For details on dustproof and waterproof performance, please refer to the instruction manual.
* The camera head diameter is measured without attachments.
* Operation with all microSDHC/SDXC cards is not guaranteed. Recommended microSDHC memory card: KIOXIA EXCERIA BASIC series. Tested by our company; however, we do not guarantee all recording operations or performance.
System Requirements
- Supported OS: Windows 10 (32/64-bit) to Windows 11
- CPU: 1GHz or faster with PAE, NX, and SSE2 support
- Memory: 2GB or more
