Concept

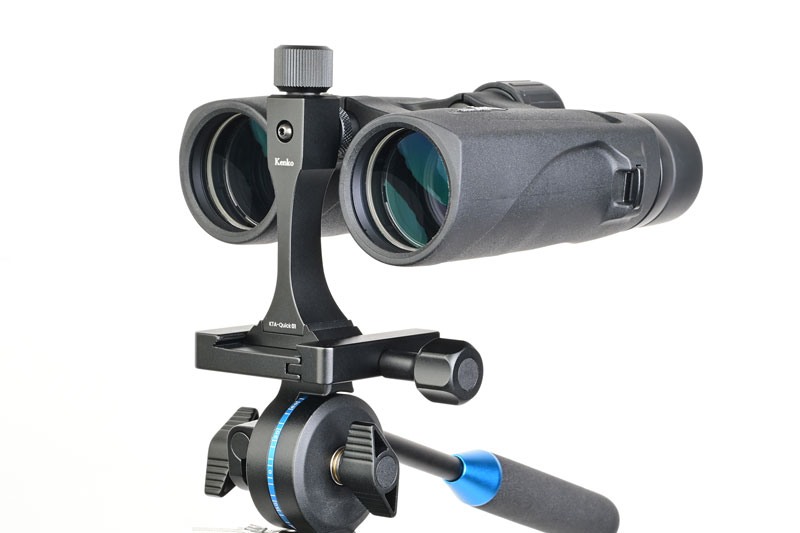

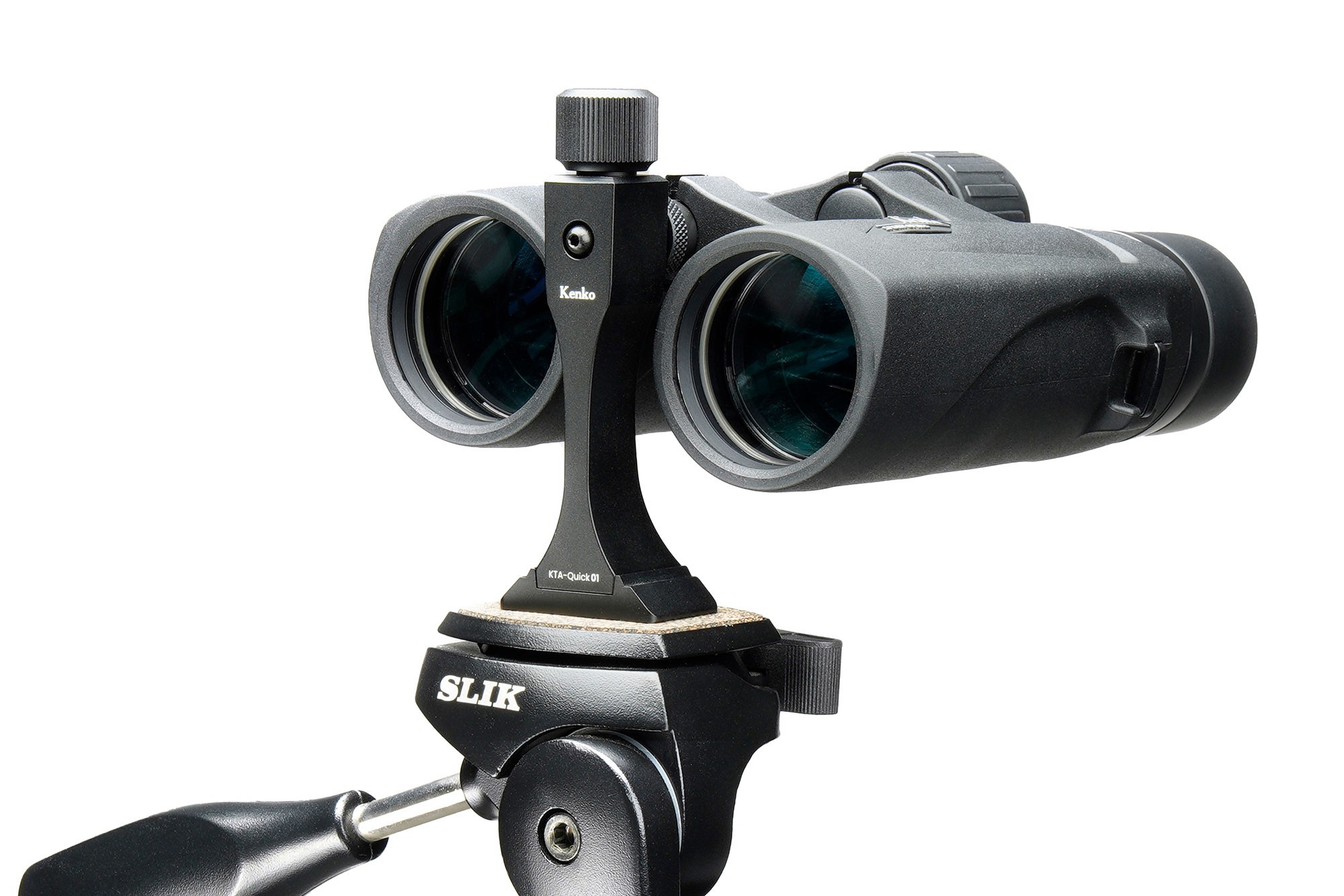

This tripod adapter allows you to easily attach binoculars to a tripod.
It’s especially useful for extended use such as birdwatching or stargazing, or when using high-magnification binoculars. Mounting your binoculars on a tripod ensures a more stable view.
The KTA-Quick01 features a quick-release connector mechanism, enabling fast and easy attachment and removal of binoculars.
While it can be attached to a tripod via a standard 1/4-inch screw, the base also conforms to the Arca-Swiss standard, making it compatible with Arca-Swiss-style tripods as well.
Compatible Binocular Models
- Avantar ED Series
- ultraVIEW EX Compact 8x32
- ultraVIEW EX Compact 10x32
- ultraVIEW EX OP 8x42DH III
- ultraVIEW EX OP 10x42DH III
- SG EX OP 8x34 WP
- SG EX OP 10x34 WP
- SG EX OP 8x26 WP
- SG EX OP 10x26 WP
- Artos Series
- ultraVIEW Series
- Mirage Series
- ultraVIEW H Series
Product Specifications
| Tripod Mount | 1/4-inch screw Arca-Swiss |
|---|---|
| Binocular Mount | 1/4-inch screw |
| Weight | 87g |
| Size | 106x33x38 mm |
| Materials | Main body: Aluminum, Steel Binocular mounting screw: Aluminum, Steel, Rubber |
Highlighted features
 |
The tripod holder can be used with any binocular model equipped with a (1/4-inch) compatible screw mount. * Compatibility may vary depending on the specific model. Please check the specifications of your binoculars before use. |
 |

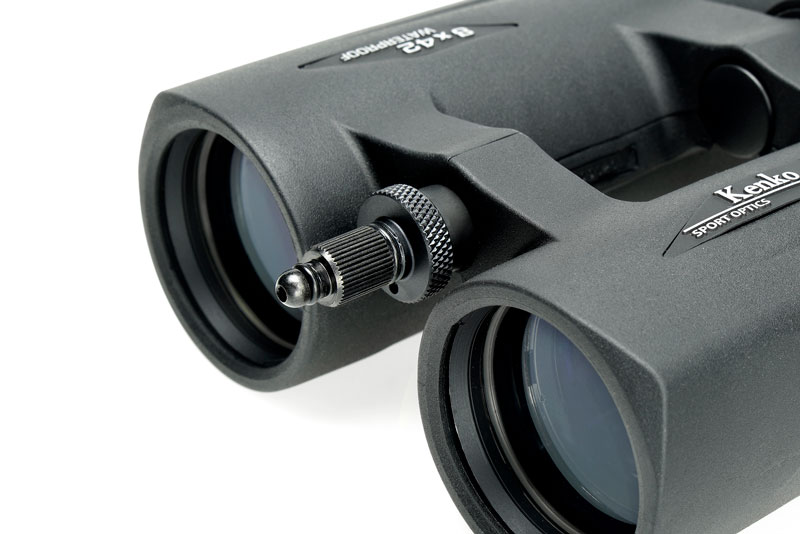

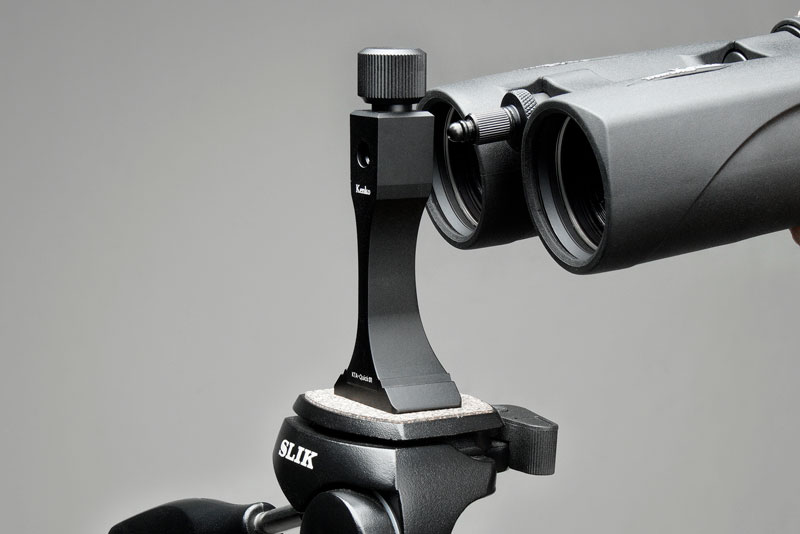

Simply attach the included binocular mounting screw to the binoculars, and you'll be able to quickly mount or remove them from the tripod. |
 |
Also compatible with Arca-Swiss standard tripods. |
